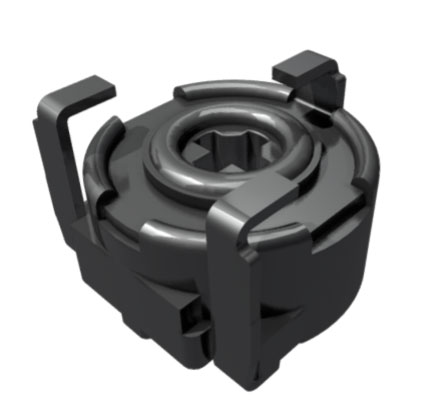

ps6 pontetiometerThe PS-6 6mm SMD single-turn potentiometers feature configurable capabilities for design flexibility in a tiny package. They can be processed by standard automated placement equipment and lead-free reflow  soldered.

  • Is pin-to-pin compatable with our PT-6.
  • RoHS and REACH compliant.
  • Available in J-hook and gull-wing terminal configurations.
  • Tape and reel packaging.
  • Top cross-slot and hexagonal rotor adjustment.
  • Excellent soldering behavior even with aggressive profiles.
  • Low profile that allows customers to use it even in space-constraint applications.
  • Specifically designed for leadfree reflow soldering processes (excellent performance).
  • Dust proof enclosure. IP54 protection according to IEC 60529.
  • Stop positions (click sensation).
  • Self extinguishable plastic UL 94V-0.
  • Also upon request:

   - Long life model for low cost control potentiometer applications.

   - Wiper positioned at initial, 50% or fully clockwise.

The PS-6 Long Life version has been conceived for the appliance and automotive industries to provide a cost effective control potentiomteer solution.
