PSE
Compact Panel Mount Hall-Effect Rotary Sensor
The PSE Series Rotary Position Sensors are based on contactless hall-effect technology and deliver high accuracy and linearity in a compact package. Increased rotational life and robustness against humidity, vibration and shock make them perfectly suited for harsh industrial and transportation environments. These absolute sensors will not lose its values even after a power failure.
The PSE end-of-shaft sensor is offered in two versions: one with 360 degree endless rotation with programmable electrical angles from 15 to 360 degrees (without deadband) and another version that stops the rotary movement at rotational travel of 290 degrees.
Custom versions with different shafts and customer specific output curves can be delivered on request.
KEY FEATURES

SPECIFICATIONS
Linearity* | ±1% absolute (±0.5% upon request) |
Electrical Angular Range** | 360°, 270°, 180°, 120°, 90°, 50° |
Output Protocol | Analog (Ratiometric), PWM |
Resolution | 12 bits |
Output Range** |
standard - 10% to 90% Vdc inverted - 90% to 10% Vdc |
Supply Voltage** | 5V ±10% |
Supply Current | Typ 8.5 mA |
Voltage Protection | ±18V |
Self-diagnostic features | yes |
* Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity.
** Other specification on request
Mechanical Angular Range* |
360° endless rotation (PSE-360) 290º (PSE-290) |
Connection | Fly leads, connector assembly on request |
Shaft diameter* | 6,25mm |
Mounting Method | Panel mount |
* Other specifications on request

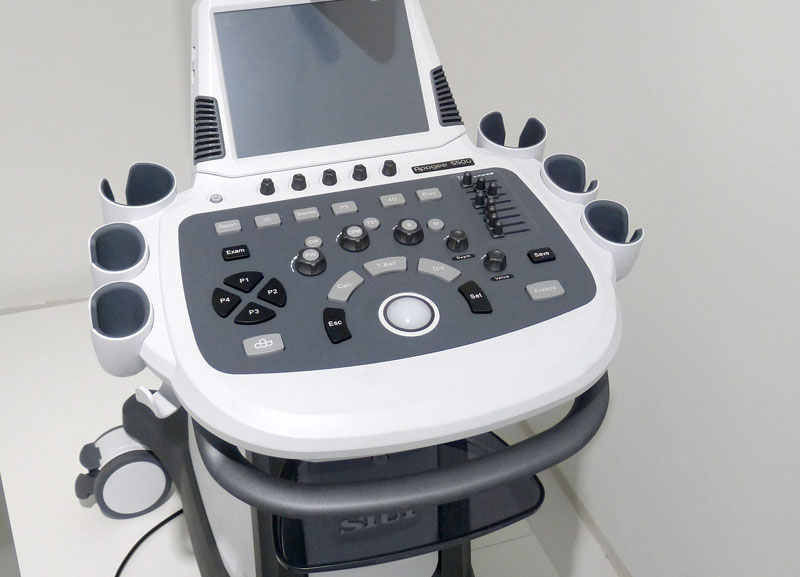

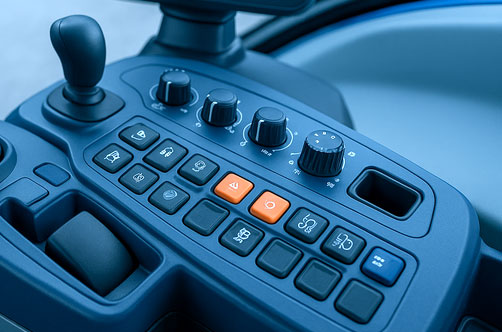

APPLICATION EXAMPLES
