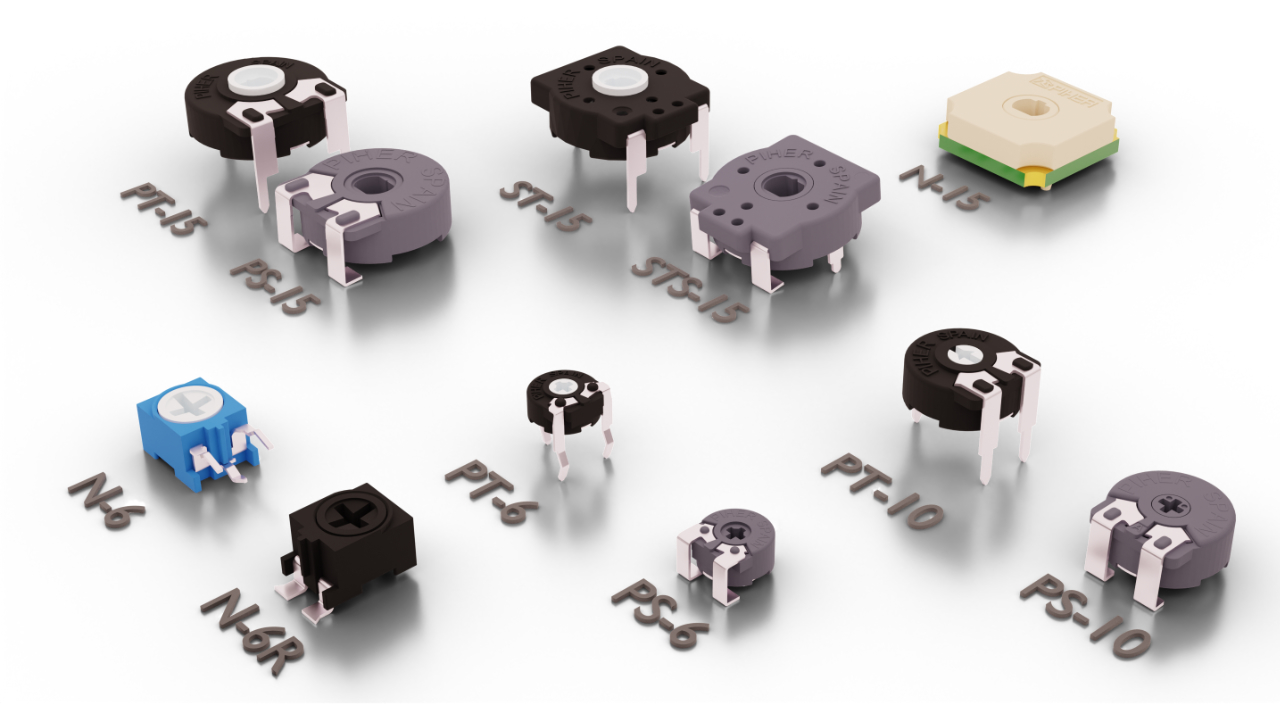

Piher Sensing Systems’ 6 to 15 mm trimmer and control potentiometers (also known as Potis or Trimpots) are the perfect match for hundreds of industrial, automotive and appliance applications. In many control and position feedback applications, they provide sufficiently accurate measurement at a lower cost than competing technologies.
Trimmer potentiometers are small, adjustable resistors that are used to fine-tune the resistance in an electronic circuit. Unlike control potentiometers, trimmer potentiometers are designed to be adjusted infrequently, or even only once the circuit is assembled as for example in timer or control relays.
Control potentiometers, on the other hand, are designed to be adjusted frequently which means they are suitable for applications such as power or program selection in electrical equipment and appliances.
The boundary between both types is not precisely defined as, for example, Piher’s 10mm potentiometers can be configured for up to 100.000 cycles, while still being a cost efficient solution for trimming applications.
It is the design flexibility, high quality and wide range of configurable options engineers value in potentiometers supplied by Piher. With over 70 year´s experience and through continued investment in the product line, our potentiometers are now found in electrical equipment throughout the world. Panel mount potentiometers designed to be mounted on a panel or enclosure, usually with a threaded bushing for secure attachment can be found here.
The broad range of physical and electrical configurations makes our potentiometers suitable for a wide selection of different applications:
Packaging: bulk or tape and reel for pick and place systems
Mounting: vertical and horizontal SMD and through hole options
Rotors: different types and colors
Resistance: up to 5 million Ohm
Standard tolerance: +/-30%, +/-20%
Technology: carbon and cermet
Tapers: linear, log, antilog, stepped, custom
Mechanical rotation angle: mechanical end-stop or endless rotation
Detents: up to 58 mechanical stops
Constant value zones (can be combined with mechanical stops)
Wiper position
Life: long-life versions with up to 200.000 cycles (higher on request)
Power rating: up to 0.5W
Linearity: min 2.5%
Working temperature: -40ºC up to +120ºC
Cut tracks (open circuit) at the beginning or end of travel
Flame retardant housing materials
In addition to customizing and configuring our established catalogue of 6 to 15mm trimmers and control potentiometers, we will design and manufacture any contacting solution in any size based on our tried-and-tested potentiometer technology and processes.
