The HRPS Series is a cost-effective, non-contacting position sensing solution for applications in harsh environments. Whether you’re working on industrial, heavy-duty transportation (agriculture – forestry – construction -industrial transports – mining), or other challenging industries, this plug-and-play sensor is designed to meet demanding requirements of temperature variations, mechanical stress, and electromagnetic interference.

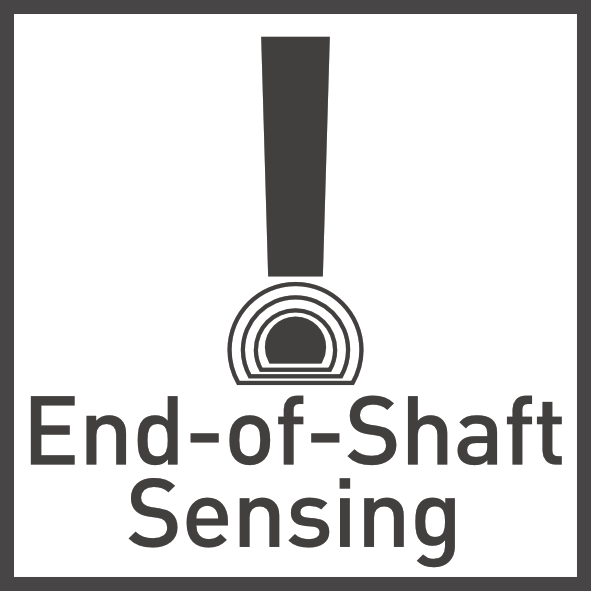

This compact sensor with integrated AMP superseal connector uses a permanent magnet that is securely fastened to the shaft and acts as the only moving component. Optionally, the HRPS can be ordered with a lever arm for further flexibility in mounting.
Fully sealed and flanged mounted for easy positioning, the sensor is versatile with configurable angular ranges from 50 to 360 degrees, different pin-out options and support for low and high-voltage power supply.
| Linearity* | ±1% absolute (±0.5% upon request) |
| Angular range** | Programmable from 50 to 360 degrees |
| Output protocol** | Analog (Ratiometric) |
| Resolution | Up to 12 bit |
| Supply voltage | 5V ±10% / 7V-32V |
| Supply current | 12 mA / 14 mA |
| Voltage protection |
Overvoltage: +10V / +36V Reverse voltage: -10V / -30V |
| Self-diagnostic features | Yes |
* Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity ** Others available upon request
| Life | Up to 50M cycles |
| Mechanical range | 360° (endless rotation) |
| Mating connector | AMP Superseal 282087-1 |
| Operating temperature | -40° to +125°C |
| Shock | 50g |
| Vibration | 5Hz to 2000 Hz; 20g; Amax 0,75 mm |
| Sealing | IP67, IP69K |
