TMR Current Sensor

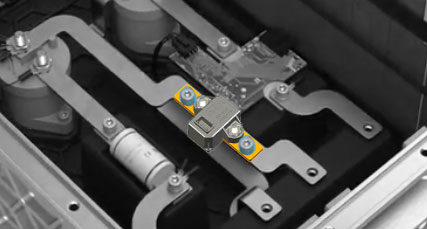

Automotive & Industrial TMR Current Sensor - integrated busbar

Piher Sensing Systems launches a TMR current sensor that generates a ratiometric analog output voltage signal proportional to the current flowing through the integrated conductor. Compared to conventional Hall-effect current sensors, this sensor provides more accurate measurement, a higher sampling rate and lower temperature drift. It has been designed for accurate measurement of currents in automotive battery management and motor control applications.

Specifications

Current transducer based on TMR technology
Up to ±4,000 A
Fastening ready
Analog ratiometric output
Non-intrusive technology
Galvanic separation between power and control
Immunity to common mode fields

KEY FEATURES

Accurate

Accurate, non-intrusive measurement of currents with galvanic separation between power and control

Adjust to temperature rates

Maintains precision from -40°C to 125°C

Easy to customize

Need a custom sensor? Contact us now and learn how we can help

Resistant to magnetism

Designed to cope with external magnetic interferences.

SPECIFICATIONS

Parameter	Unit	Min.	Typ.	Max.
Current type	AC, DC
Current measuring range	A			4.000
Supply voltage	V	4,75	5	5,5
Supply current	mA	6		9
Output voltage	V	0,5		4,5
Response time	µsec		0,3
Frequency badwidth	MHz	DC		1
Accuracy (at 25°)*	%		<1%
