PS-6

6-mm carbon SMD potentiometer

The PS-6 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a knob, a motor control or a human interface adjustment.

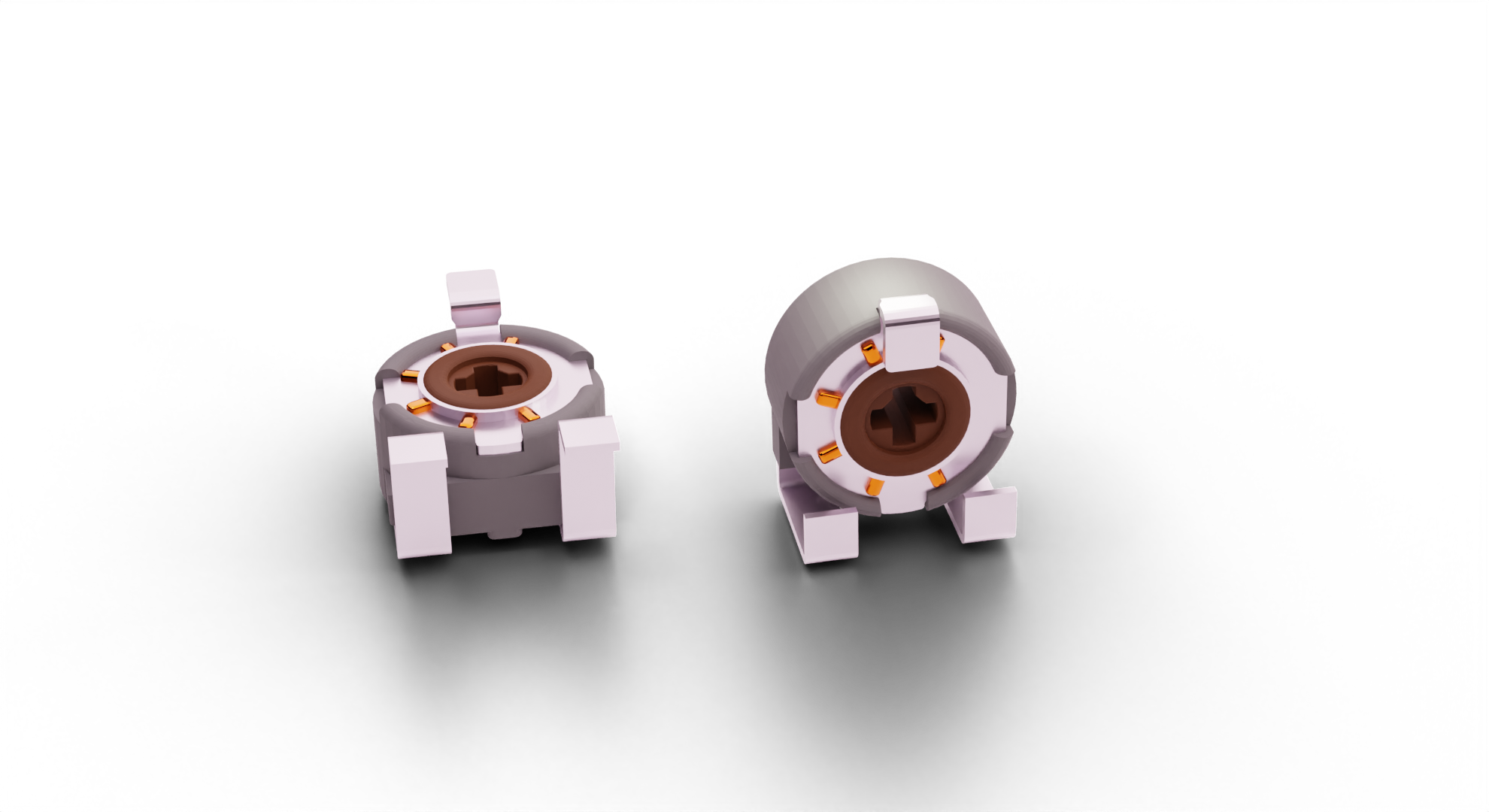

This potentiometer is the only 6 mm miniature potentiometer with optional stop positions for haptic feedback.

  ■  Designed for lead-free reflow soldering processes
  ■  Excellent performance

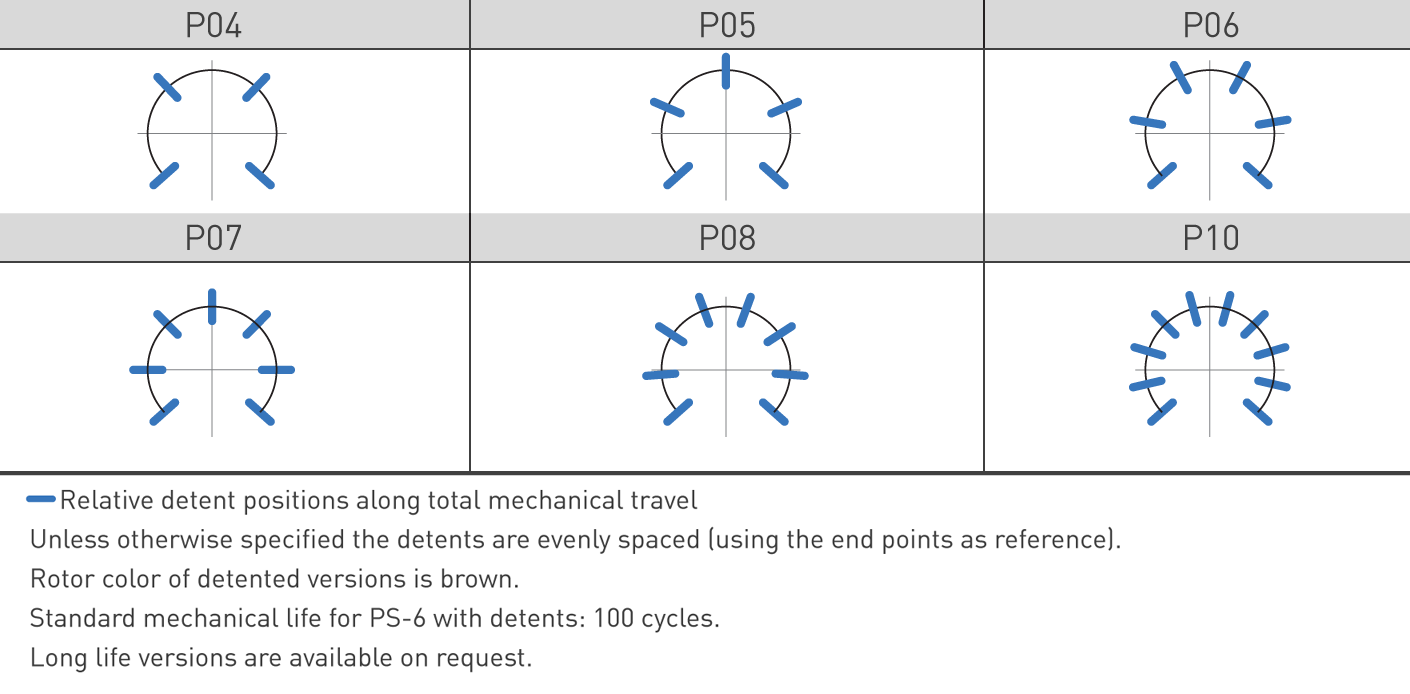

  ■  Up to 10 mechanical detents
  ■  1.000 life cycles
  ■  IP54 protection / Moisture sensitivity level 1
  ■  Embossed tape packaging

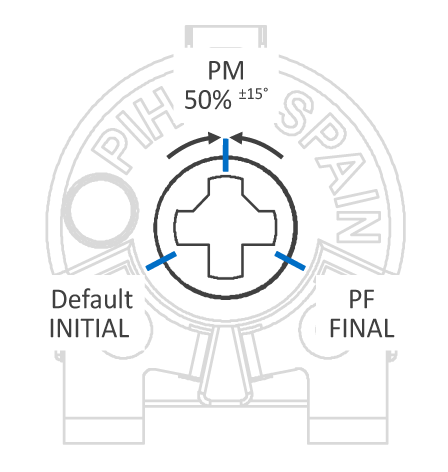

  ■  Wiper positioned at initial, 50% or fully clockwise
  ■  Loose and assembled knobs, shafts available separately
  ■  Self extinguishable plastic UL 94V-0


The only 6 mm miniature trimmer potentiometer with optional stop positions for haptic feedback.

KEY FEATURES



SPECIFICATIONS

Taper* Linear
Range of values* 1KΩ ≤ Rn ≤ 1.5MΩ
Decad. 1.0-2.0-2.2-2.5-4.7-5.0
Tolerance* 1KΩ ≤ Rn ≤ 500KΩ - ± 30%
500KΩ < Rn ≤ 1.5MΩ - + 50% / - 30%
Max voltage 100 VDC
Nominal power @ 50°C 0.1 W
Residual resistance ≤ 0.5% Rn
Equivalent noise resistance ≤ 4.5% Rn
Operating temperature -40°C to +85°C

* Non linear tapers available on request

Mechanical rotation angle 235° ± 5°
Electrical rotation angle 200° ± 20°
Torque Rotational - 0.2 to 2 Ncm (0.3 to 2.7 in-oz)
Stop - > 4 Ncm (>7 in-oz)
Push-pull force over the rotor > 5 N
Life* 1k cycles

* Others available on request

Test conditions (CEI 393-1) ΔR(%) - Typical test results
Electrical life 1.000h at 50°C; 0.25 W ±10%
Mechanical life 1000 cycles at 10 to15 cpm ±10%
Temperature coefficient –25° C; +85° C ±1.500 ppm/°C
Thermal cycling 16h at 85°C and 2h at -25°C ±5%
Damp heat 500h at 40°C and 95% relative humidity (RH) ±15%
Vibration 2h each plane at 10Hz - 55Hz ±3%
Storage 6 month at 23°C ±2°C and 50% RH ±5%

Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH.
Mechanical life of detented versions may vary.
