PSC-10

10mm cermet SMD potentiometer

The PSC-10 SMD potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.

  ■  Up to 10.000 life cycles
  ■  IP54 protection
  ■  Embossed tape packaging according to IEC 60286-3:2007
  ■  Wiper positioned at initial, 50% or fully clockwise
  ■  Linear, logarithmic and antilogarithmic tapers
  ■  Self extinguishable plastic (UL 94V-0) available
  ■  Up to 16 mechanical detents for tactile feedback
  ■  Locating pins for accurate PCB positioning
  ■  Low torque version
  ■  Shafts and knobs





KEY FEATURES





SPECIFICATIONS



Taper¹ Lin, Log, Alog
Range of values¹ Lin - 100Ω ≤ Rn ≤ 5MΩ
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ
Standard tolerance¹ 100Ω ≤ Rn ≤ 5MΩ -> 20%
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ -> 30%
Max. Voltage Lin - 200 VDC
Log, Alog - 100 VDC
Nominal power 70°C (158°F)
0.33 W
Residual resistance¹ ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature 2 -40°C to +90°C
(-40°F to + 194°F)

1 Others available on request   2 +120°C/+248°F upon request

Mechanical rotation angle 235° ± 5°
Electrical rotation angle 220° ± 20°
Torque Rotational - 0.4 to 2 Ncm (0.6 to 2.7 in-oz)
Stop - > 5 Ncm (>7 in-oz)
Life1 Up to 10k cycles

1 Others check availability

Test method (CEI 393-1) ΔR(%) - typical test results
Electrical life 1.000h at 50°C; 0.15W
1.000h at 70°C; 0.33W
n/a
±5%
Mechanical life 1000 cycles at 10 to 15 cpm ±3% (Rn < 1MΩ)
Temperature coefficient -40°C; +90°C
-40°C; +85°C
-25°C; +70°C
±100 ppm/°C (Rn < 100KΩ)
n/a
n/a
Thermal cycling 16h at 90°C and 2h at -40°C ±2.5%
Thermal cycling 16h at 90°C and 2h at -40°C ±5%
Damp heat 500h at 40°C and 95% relative humidity (RH) ±5%
Vibration 2h each plane at 10Hz - 55Hz ±2%
Storage month at 23°C ±2°C and 50% RH ±5%

Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH

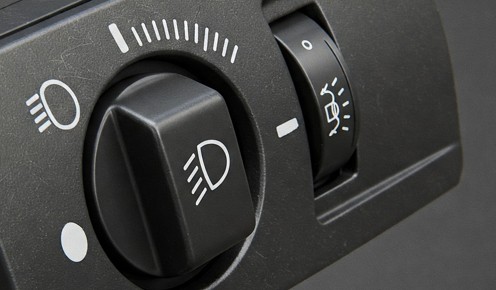

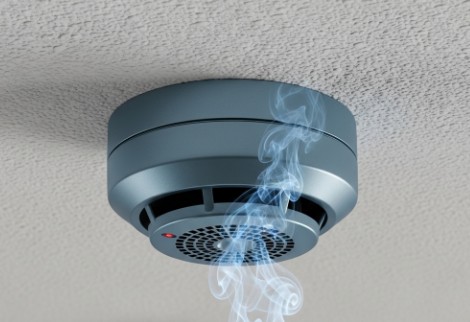

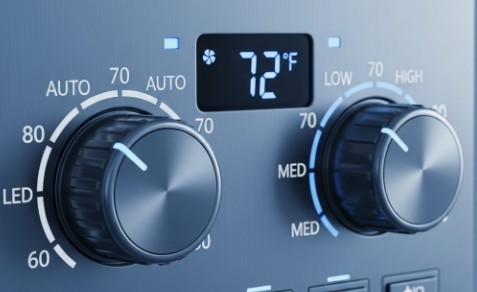

APPLICATION EXAMPLES
