PT-15

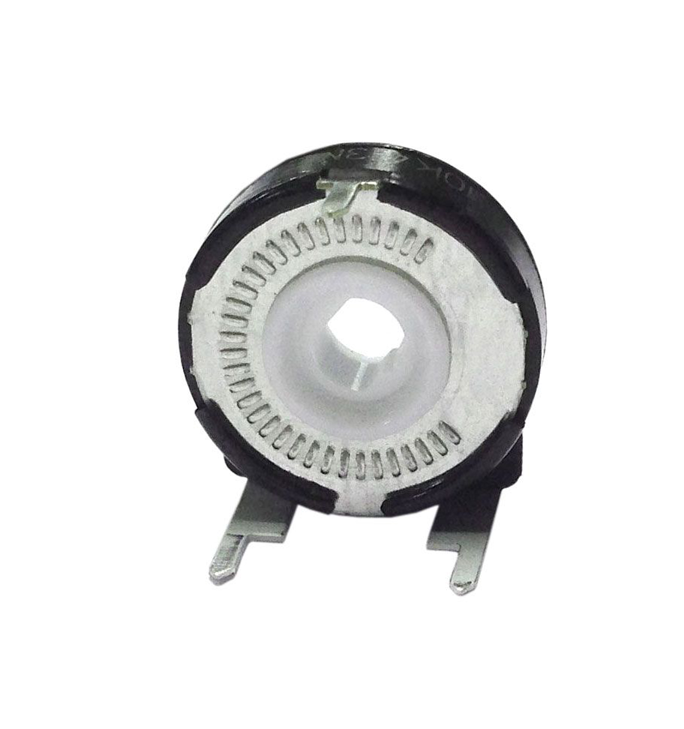

15-mm carbon through-hole potentiometer

The PT-15 potentiometers offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or light brightness.

Thanks to its extended mechanical life, this potentiometer is widely used as a sensor providing position feedback to the microcontroller.

A cermet potentiometer counterpart with higher power rating is the PTC-15.

An SMD potentiometer counterpart is the PS-15.





KEY FEATURES





SPECIFICATIONS



Taper¹ Lin, Log, Alog
Range of values¹ (Decad. 1.0 - 2.0 - 2.2 - 2.5 - 4.7 - 5.0)
Lin - 100Ω ≤ Rn ≤ 5MΩ
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ
Standard Tolerance¹ 100Ω ≤ Rn ≤ 1MΩ - ± 20%
1MΩ < Rn ≤ 5MΩ - ± 30%
Max. Voltage Lin - 250 VDC
Log, Alog - 125 VDC
Nominal power 50°C (122°F)
Lin - 0.25 W
Log, Alog - 0.12 W
Residual resistance¹ ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature -25°C to +70°C ²
(-13°F to + 158°F)

¹ Others available on request ² Up to 85°C depending on application

Mechanical rotation angle¹ 265° ±5°
Electrical rotation angle 240° ±20°
Torque Rotational: 0.5 to 2.5 Ncm (0.7 to 3.4 in-oz)
Stop: > 10 Ncm (>14 in-oz)
Life² Up to 100k cycles

¹ 240º ±5º available upon request. Endless rotation available: ST-15 ² Others check availability

Test method (CEI 393-1) ΔR(%) - Piher typical test results
Electrical life 1.000h at 50°C; 0.15W
1.000h at 70°C; 0.33W
±5%
n/a
Mechanical life 1000 cycles at 10 to 15 cpm ±3 % (Rn < 1M )
Temperature coefficient –25°C; +70°C
-40°C; +90°C
±300 ppm/°C (Rn < 100K)
n/a
Thermal cycling 16h at 85°C and 2h at -25°C
16h at 90°C and 2h at -40°C
±2.5%
n/a
Damp heat 500h at 40°C and 95% relative
humidity (RH)
±5%
Vibration 2h each plane at 10Hz - 55Hz ±2%
Storage 6 month at 23°C ±2°C and 50% RH ±2.5%

Out of range values may not comply with these results. Standard test conditions: temperature: 23°C ±2°C and 45% to 70% RH
