N-15
Low Profile Rotary Position Sensor / Potentiometer
The N-15 series offers you endless rotation, 340º wide electrical angle, SMD or through-hole mount, an extended working temperature range of –40ºC to +120ºC and a whole series of customisation possibilities making it the most flexible product on the market. The N-15 is ideal for appliance and automotive control and sensor applications.
■ SMD or Through-hole mount
■ Excellent performance (3% linearity)
■ Up to 2.000.000 life cycles
■ IP54 protection
■ 360° endless rotation
■ 340° electrical angle
■ Low profile (4.4 mm) and footprint (15 mm)
■ High operating temperature range
■ Polarised “T” rotor (European Home Appliance standard)
■ Embossed tape packaging according to IEC 60286-3:2007
■ All PT-15 shafts compatible
Also available as 6-pulse incremental encoder or mechanical switch with up to 12 positions.
SPECIFICATIONS
Standard | Extra-long life | |
---|---|---|
Taper | Linear | |
Resistance range¹ | 5 kΩ ≤ Rn ≤ 100 kΩ | 5 kΩ |
Tolerance | ±30% | |
Max. voltage | 120 Vdc | 27 Vdc |
Nominal power at 50°C (122°F) | 0.15 W | |
Linearity (absolute) | 3% | |
Operating temperature | -40°C to +120°C |
1 Others check availability
Standard | Extra-long life | |
---|---|---|
Mechanical rotation angle | 360° | |
Electrical rotation angle | 340° ±10° | 110° ±10° |
Rotational torque | ≤20 mN.m | |
Mounting method | SMD or Through-hole | SMD |
Mechanical life | Up to 200,000 cycles | Up to 2,000,000 cycles |
Test method | ΔR(%)- typical test results | |
---|---|---|
Electrical life | 1.000 h at 50°C; 0.15 W | ±40% |
Mechanical life | 100,000 cycles at 20 cpm | ±40% (Rn < 100 k) |
Temperature coefficient | -40°C; +120°C | ±300 ppm/°C (Rn < 100 k) |
Thermal cycling | 10h at 120°C and 10h at -40°C | ±40% |
Damp heat | 480h at 40°C and 95% relative humidity (RH) | ±40% |
Storage | 6 month at 23°C ±2°C and 50% RH | ±40% |
Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH

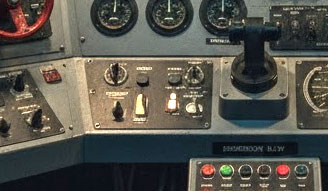

APPLICATION EXAMPLES
