PT-10

10mm carbon through-hole potentiometer

The PT-10 is a high-quality 10mm carbon through-hole potentiometer engineered for applications that demand frequent and reliable adjustments. Its convenient shaftless design offers exceptional flexibility, allowing seamless integration with a variety of HMI mechanisms. This potentiometer is suitable for controlling variable outputs, including frequency, motor speed, or volume.

  ■  Excellent performance (up to 3% linearity)
  ■  Up to 16 mechanical detents for tactile feedback
  ■  Up to 100.000 life cycles
  ■  IP54 protection
  ■  Bulk, magazine or embossed tape (reel) packaging
  ■  Polyester / Alumina substrate
  ■  Wiper positioned at initial, 50% or fully clockwise
  ■  Loose and assembled shaft and knobs
  ■  Linear, logarithmic and antilogarithmic tapers
  ■  Self extinguishable plastic (UL 94V-0) available
  ■  SPDT switch and low torque versions available


KEY FEATURES



SPECIFICATIONS

Taper¹ Lin, Log, Alog
Range of values¹ (Decad. 1.0 - 2.0 - 2.2 - 2.5 - 4.7 - 5.0)
Lin - 100Ω ≤ Rn ≤ 5MΩ
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ
Tolerance¹ ± 20% - 100Ω ≤ Rn ≤ 1MΩ
± 30% - 1MΩ < Rn ≤ 5MΩ
Max. Voltage Lin - 200 VDC
Log, Alog - 100 VDC
Nominal power 50°C (122°F)
Lin - 0.15 W
Log, Alog - 0.07 W
Residual resistance¹ ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature -25°C to +70°C ²
(-13°F to + 158°F)

1 Others available on request; 2 Up to 85°C depending on application

Mechanical rotation angle¹ 235° ± 5°
Electrical rotation angle¹ 220° ± 20°
Torque Rotational - 0.4 to 2 Ncm (0.6 to 2.7 in-oz)
Stop - > 5 Ncm (>7 in-oz)
Push-pull force over the rotor > 49N
Life² Up to 100k cycles

1 Endless rotation available: ST-10; 2 Others check availability

Test method (CEI 393-1) PT-10 %-% ΔR(%)- Piher typical test results
Electrical life 1.000h at 50°C; 0.15W
1.000h at 70°C; 0.33W 		±5%
n/a
Mechanical life 1000 cycles at 10 to 15 cpm ±3 % (Rn < 1M )
Temperature coefficient –25°C; +70°C
-40°C; +90°C 		±300 ppm/°C (Rn < 100K)
n/a
Thermal cycling 16h at 85°C and 2h at -25°C
16h at 90°C and 2h at -40°C 		±2.5%
n/a
Damp heat 500h at 40°C and 95% relative humidity (RH) ±5%
Vibration 2h each plane at 10Hz - 55Hz ±2%
Storage 6 month at 23°C ±2°C and 50% RH ±2.5%

Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH

POTENTIAL APPLICATIONS



DOWNLOADS


CONFIGURATOR















    ⓘ Please note that optional features limit the probability for directly available inventory
















    Configure

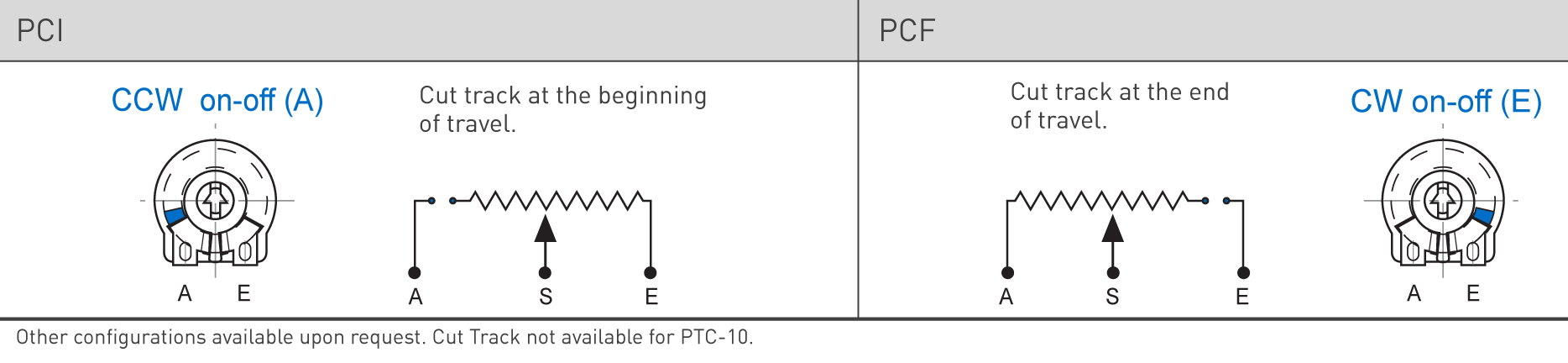

    /- rotors:rotors -/ /- mouting:mouting -/ /- resistive-value:resistive-value -/ /- taper:taper -/ /- tolerance:tolerance -/ /- life-cycle:life-cycle -/ /- open-circuit:open-circuit -/ /- stop-positions:stop-positions -/ /- flammability:flammability -/ /- shaft-thumbwheel:shaft-thumbwheel -/ /- rotor-shaft-color:rotor-shaft-color -/ /- wiper-position:wiper-position -/ /- torque:torque -/ /- packaging:packaging -/ /$ %torque% () $/ /$ %leadsmaterial% (-S) $/ /$ %rotorshaftcolor% () $/ /? life-cycle:Extra Long; ; (-L) %torque% ?/ /@ life-cycle:Extra Long; torque("Standard") @/ /@ life-cycle:Long; torque("Standard") @/ /@ life-cycle:Extra Long; torque("Select") @/ /@ life-cycle:U; torque("Standard") @/ /@ life-cycle:U; torque("Low") @/ /? rotors:B; () %rotorshaftcolor% ?/ /? rotors:K; () %rotorshaftcolor% ?/ /? rotors:L; () %rotorshaftcolor% ?/ /? rotors:M; () %rotorshaftcolor% ?/ /? rotors:R; () %rotorshaftcolor% ?/ /? rotors:G; (VI) %rotorshaftcolor% ?/ /? mouting:H07; () %leadsmaterial% ?/ /? mouting:V05; () %leadsmaterial% ?/ /? electrical-angle:360; output-signal:standard; (C0000) %func% ?/ /@ rotors:G; rotor-shaft-color("Select" "Natural" "Black" "Cream") @/ /@ rotors:B; rotor-shaft-color("Violet") @/ /@ rotors:K; rotor-shaft-color("Violet") @/ /@ rotors:L; rotor-shaft-color("Violet") @/ /@ rotors:M; rotor-shaft-color("Violet") @/ /@ rotors:R; rotor-shaft-color("Violet") @/ /@ rotors:W; rotor-shaft-color("Violet") @/ /@ rotors:X; rotor-shaft-color("Violet") @/ /@ rotors:Y; rotor-shaft-color("Violet") @/ /@ rotors:Z; rotor-shaft-color("Violet") @/ /@ rotors:Z; mouting("V05" "V10" "V11" "V13") @/ /@ rotors:W; shaft-thumbwheel("Fig. 4") @/ /@ rotors:X; shaft-thumbwheel("Fig. 4") @/ /@ rotors:W; shaft-thumbwheel("Select" "Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16") @/ /@ rotors:X; shaft-thumbwheel ("Select" "Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16") @/ @/ /@ rotors:Y; shaft-thumbwheel("Select" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:Z; shaft-thumbwheel("Select" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:B; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:G; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:K; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:L; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:M; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ rotors:R; shaft-thumbwheel("Fig. 5" "Fig. 15" "Fig. 17" "Fig. 16" "Fig. 1" "Fig. 2" "Fig. 3" "Fig. 4" "Fig. 6" "Fig. 7" "Fig. 8" "Fig. 9" "Fig. 10" "Fig. 11" "Fig. 12" "Fig. 14" "Fig. 18" "Fig. 19" "Fig. 20" "Fig. 21" "Fig. 22" "Fig. 23" "Fig. 25" "Fig. 27" "Fig. 28" "Fig. 29") @/ /@ mouting:V05; packaging("Magazines") @/ /@ mouting:V13; packaging("Magazines") @/ /@ mouting:H10; packaging("Magazines") @/ /@ rotors:X; packaging("Magazines") @/ /@ rotors:W; packaging("Magazines") @/ /@ rotors:Y; packaging("Magazines") @/ /@ rotors:Z; packaging("Magazines") @/ /% PT10*rotors**mouting*-*resistive-value**taper**tolerance**life-cycle**open-circuit**stop-positions**packaging**flammability**shaft-thumbwheel**rotor-shaft-color**wiper-position**torque* %/
