PTC-15

15-mm carbon / cermet through-hole potentiometer

The PTC-15 cermet potentiometers offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or led lighting brightness.

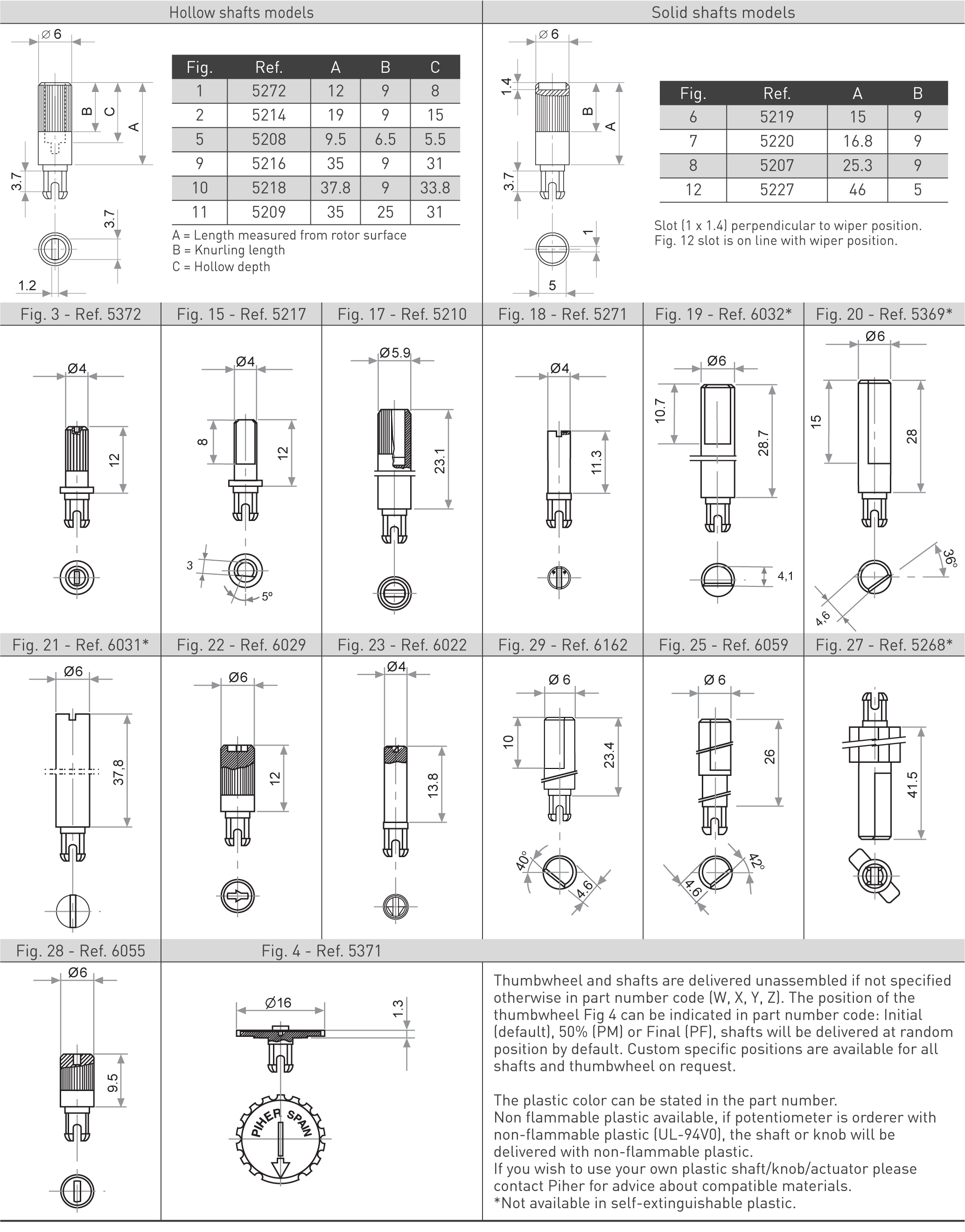

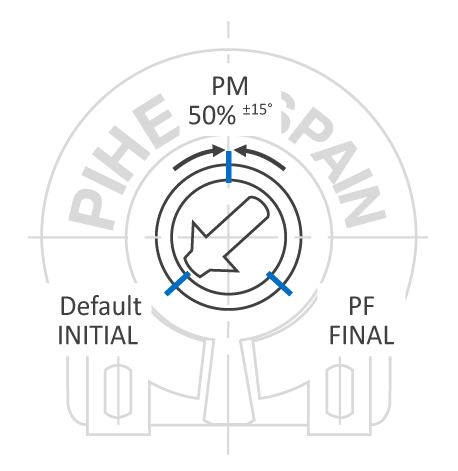

The PTC-15 series are available with different rotor designs and up to 15 shaft styles. This offering allows configure a custom solution for virtually any control or position feedback requirement. The result is a customized sensor that maximizes board density, reduces weight and eases assembly.

A carbon potentiometer counterpart is the PT-15.


KEY FEATURES



SPECIFICATIONS

Taper¹ Lin, Log, Alog
Range of values¹ (Decad. 1.0 - 2.0 - 2.2 - 2.5 - 4.7 - 5.0)
Lin - 100Ω ≤ Rn ≤ 5MΩ
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ
Tolerance¹ 100Ω ≤ Rn ≤ 1MΩ - ± 20%
1MΩ < Rn ≤ 5MΩ - ± 30%
Max. Voltage Lin - 250 VDC
Log, Alog - 125 VDC
Nominal power 70°C (158°F)
Lin - 0.50 W
Log, Alog - 0.25 W
Residual resistance¹ ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature -40°C to +90°C ³
(-40°F to + 194°F)

1 Others available on request; 2 Up to 85°C depending on application.; 3 +120°C/+248°F upon request

Mechanical rotation angle¹ 265° ± 5°
Electrical rotation angle 240° ± 20°
Torque Rotational - 0.5 to 2.5 Ncm (0.7 to 3.4 in-oz)
Stop - 10 Ncm (>14 in-oz)
Life² Up to 10k cycles

1 240º ± 5º available upon request. Endless rotation available: ST-15; 2 Others check availability

Test method (CEI 393-1) PTC-15 %-% ΔR(%) - Piher typical test results
Electrical life 1.000h at 50°C; 0.15W
1.000h at 70°C; 0.33W 		n/a
±2%
Mechanical life 1000 cycles at 10 to 15 cpm ±2%
Temperature coefficient –25°C; +70°C
-40°C; +90°C 		n/a
±100 ppm/°C (Rn < 100K)
Thermal cycling 16h at 85°C and 2h at -25°C
16h at 90°C and 2h at -40°C 		n/a
±2%
Damp heat 500h at 40°C and 95% relative
humidity (RH) 		±2%
Vibration 2h each plane at 10Hz - 55Hz ±2%
Storage 6 month at 23°C ±2°C and 50% RH ±2%

Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH
