PTC-10

10-mm cermet through-hole potentiometer

The PTC-10 potentiometer offers control where frequent adjustment is required. The shaftless design allows for employment of different engagement mechanisms, such as a customized shaft, a motor control or a human interface adjustment. This potentiometer can also control variable outputs including frequency, change in motor speed or volume.

  ■  Excellent performance (up to 3% linearity)
  ■  Cermet resistive element
  ■  Up to 16 mechanical detents for tactile feedback
  ■  Up to 100.000 life cycles
  ■  IP54 protection
  ■  Bulk, magazine or embossed tape (reel) packaging
  ■  Polyester / Alumina substrate

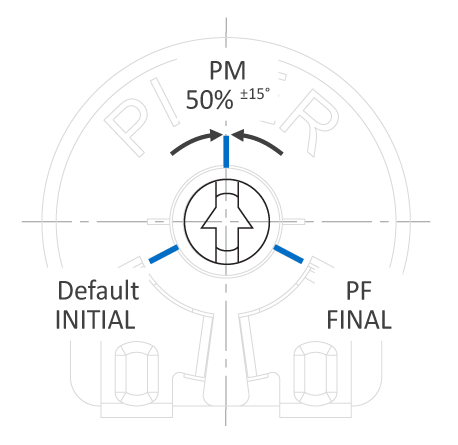

  ■  Wiper positioned at initial, 50% or fully clockwise
  ■  Loose and assembled shaft and knobs
  ■  Linear, logarithmic and antilogarithmic tapers
  ■  Self extinguishable plastic (UL 94V-0) available
  ■  SPDT switch and low torque versions available


KEY FEATURES



SPECIFICATIONS

Taper¹ Lin, Log, Alog
Range of values¹ (Decad. 1.0 - 2.0 - 2.2 - 2.5 - 4.7 - 5.0)
Lin - 100Ω ≤ Rn ≤ 5MΩ
Log, Alog - 1KΩ ≤ Rn ≤ 5MΩ
Tolerance¹ ± 20% - 100Ω ≤ Rn ≤ 1MΩ
± 30% - 1MΩ < Rn ≤ 5MΩ
Max. Voltage Lin - 200 VDC
Log, Alog - 100 VDC
Nominal power 70°C (158°F)
Lin - 0.33 W
Log, Alog - 0.17 W
Residual resistance¹ ≤ 0.5% Rn (5Ω min.)
Equivalent noise resistance ≤ 3% Rn (3Ω min.)
Operating temperature -40°C to +90°C 2
(-40°F to + 194°F)

1 Others available on request; 2 +120°C/+248°F upon request

Mechanical rotation angle¹ 235° ± 5°
Electrical rotation angle¹ 220° ± 20°
Torque Rotational - 0.4 to 2 Ncm (0.6 to 2.7 in-oz)
Stop - > 5 Ncm (>7 in-oz)
Push-pull force over the rotor > 49N
Life² Up to 10k cycles

1 Endless rotation available: ST-10; 2 Others check availability

Test method (CEI 393-1) PTC-10 %-% ΔR(%) - Piher typical test results
Electrical life 1.000h at 50°C; 0.15W
1.000h at 70°C; 0.33W 		n/a
±2%
Mechanical life 1000 cycles at 10 to 15 cpm ±2%
Temperature coefficient –25°C; +70°C
-40°C; +90°C 		n/a
±100 ppm/°C
Thermal cycling 16h at 85°C and 2h at -25°C
16h at 90°C and 2h at -40°C 		n/a
±2%
Damp heat 500h at 40°C and 95% relative humidity (RH) ±2%
Vibration 2h each plane at 10Hz - 55Hz ±2%
Storage 6 month at 23°C ±2°C and 50% RH ±2%

Out of range values may not comply with these results. Standard test conditions: temperature:23°C ±2°C and 45% to 70% RH

POTENTIAL APPLICATIONS



DOWNLOADS


CONFIGURATOR















    ⓘ Please note that optional features limit the probability for directly available inventory
