PSC-360

Rotary Non-contact Position Sensor

The robust PSC-360 is a cost-effective non-contacting rotary position sensor that provides high performance in harsh environments such as transportation, HVOR, industrial, material-handling, marine, pedal, steering, throttle, Powertrain and medical applications. This compact sensor of Piher Sensing Systems is truly non-contacting with a permanent magnet that is securely fastened to the shaft and acts as the only moving component in the sensor.

Redundant dual-output versions provide independent voltage outputs with fully customizable characteristics. Full redundancy with two separate supplies and grounds is possible too.

Additionally, a switch output can optionally be configured. The endless-rotation sensor is highly configurable with a programmable angular range between 15 and 360 degrees, different signal output options and support for low and high-voltage power supply.

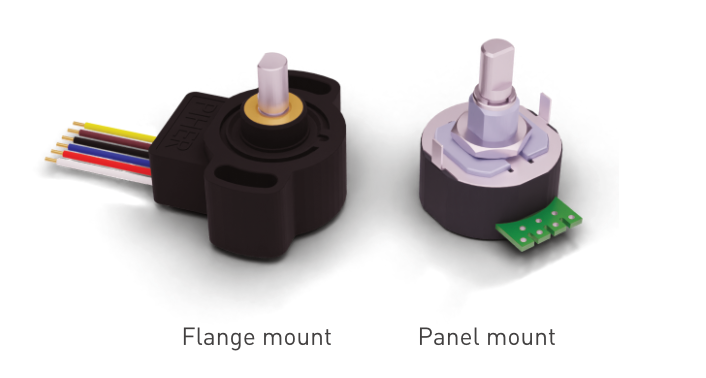

Sealed, flange mounted for easy positioning and with fly leads, it can be customized to fit any desired connector configuration.


KEY FEATURES

Without any gears or mechanical interfaces the sensor is easily assembled and calibrated and subject to limited wear and tear over lifetime.
Endless mechanical rotational angle without dead band, keeps the position on power loss with programmable electrical angles from 15 to 360 degrees.
The rugged package protects the sensor from dust, moisture, vibration and extreme temperatures for usage in the most demanding environments.
The non-contacting design allows for an extra-long product lifetime of up to 50 million cycles.
Programmable transfer function and switch outputs as well as different output protocols and redundancy levels available
The magnet is securely fastened to the shaft and acts as only moving component in the sensor.
An optional lever can extend beyond the sensor body, allowing the sensor to detect positions over a wider range or area.


SPECIFICATIONS

PSC-360 PSC-360U
Linearity* Analog, PWM
CAN 		±1% absolute (±0.5% on request)
±3 degrees absolute 		±1% absolute (±0.5% on request)
±3 degrees absolute

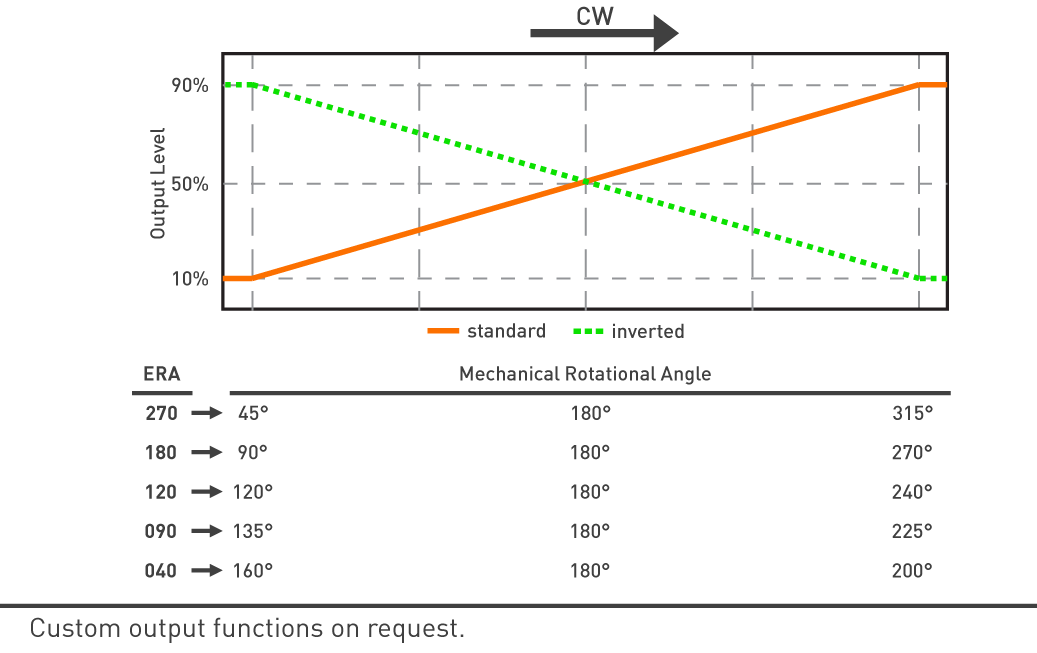

Electrical angular range** Configurable from 15° to 360° Configurable from 15° to 360°
Output protocols Analog (Ratiometric)
PWM
CAN SAE J1939
CAN Open 		Analog (Ratiometric)
PWM
Serial Protocol (SPI)
Output Simple
Redundant
Full-redundant
Switch output On request Programmable
Resolution Analog, PWM, CAN
SPI 		Up to 12 bit
n/a 		Up to 12 bit
Up to 14 bit
Supply voltage*** 5V ±10%
7V to 15V 		5V ±10%
12V ±10%
15V ±10%
Supply current Single output
Redundant output
CAN output 		Typ 8.5 mA
Typ 17 mA
Typ 47 mA
Voltage protection ±10V
Self-diagnostic features yes

* Ferromagnetic materials close to the sensor (i.e. mounting surface) may affect the sensor’s linearity.
** For electrical angular ranges below 40º: check availability.
*** Voltages up to 25V possible on request

PSC-360 PSC-360U
Rotational life Up to 50.000.000 cycles
Mechanical range 360° (endless rotation)

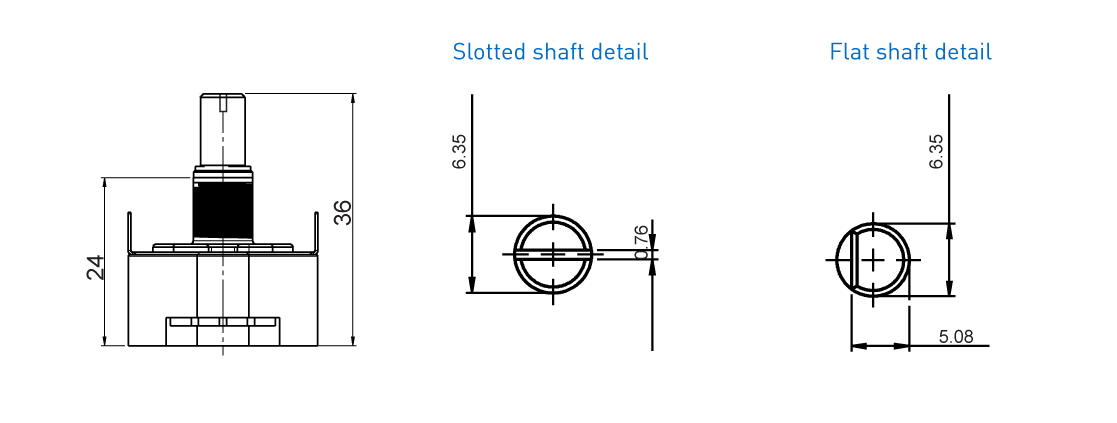

Shaft diameter 6mm 6,35mm

Other specifications available

Operating and storage temperature* Analog, PWM
CAN 		-40° to +125°C
-40º to +85ºC
Shock 50g
Vibration 5-2000 Hz; 20g; Amax 0,75 mm
Sealing IP67/IP69K

* Other specifications available
