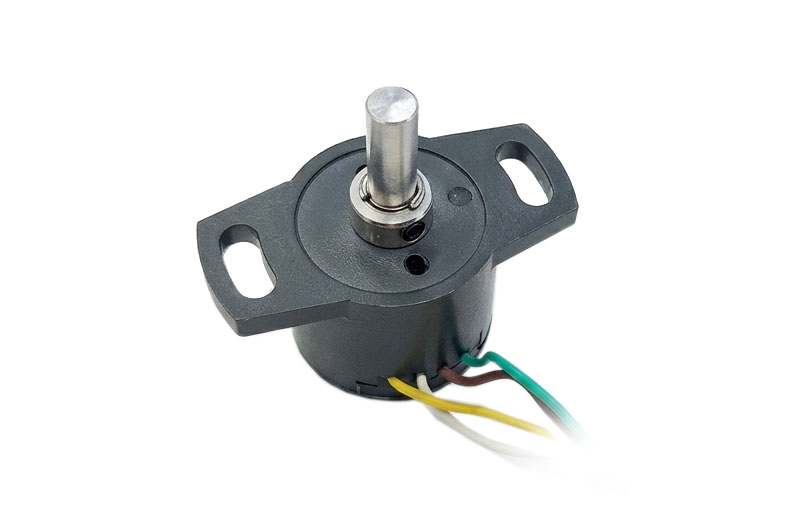

PSCR-360

Precision Non-Contact Rotary Sensor

The PSCR-360 is a high-precision, non-contact rotary position sensor designed for reliable absolute angle measurement. It offers ±0.3% typical independent linearity, endless 360° mechanical rotation, programmable electrical angles from 15° to 360°, 12-bit resolution, and up to 50 million operating cycles.

Standard, redundant, and fully redundant output options are available to meet different application and safety requirements. Its compact IP65 housing makes it suitable for industrial automation, robotics, agricultural machinery, construction equipment, transportation, and renewable energy applications.

Ideal for robotics, valve and actuator monitoring, conveyors, throttle and brake pedals, steering systems, suspension, fork and mast positioning, crane booms, loaders, agricultural machinery, construction equipment, and wind turbine blade pitch and yaw control.

PSCR-360 Precision Non-Contact Rotary Sensor

KEY FEATURES

The magnet is securely fastened to the shaft and acts as only moving component in the sensor.
The rugged package protects the sensor from dust, moisture, vibration and extreme temperatures for usage in the most demanding environments.
The non-contacting design allows for an extra-long product lifetime of up to 50 million cycles.

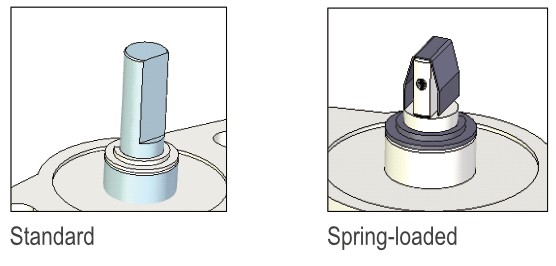

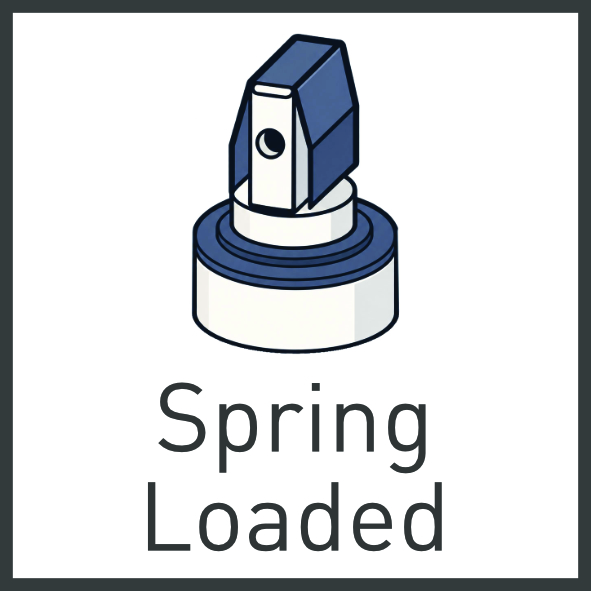

Optional spring-loaded shaft for reliable fit, easy assembly and precise position sensing.


SPECIFICATIONS

Linearity* ±0.3% independent Typ.
Angular range** Programmable from 15 to 360 degrees
Output protocol** 5V: 10% to 90% of Supply Voltage
0.5 to 4.5 VDC
Resolution 12-bit
Supply voltage 4.5 to 5.5 V / 8 to 35 V
Supply current 8mA (ratiometric)
10mA
Voltage protection +15/-10V
+30V/-30V
Self-diagnostic features Yes

* Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity ** Others available upon request    PSCR-360 Datasheet

Life Up to 50M cycles
Mechanical range 360° (endless rotation)
Shaft diameter 6 mm
Max. mounting torque 2.5 Nm
Bearing type Plain
Operating temperature -40° to +80°C
Sealing IP65
