Touchless Rotary Hall-Effect Position Sensor
Piher Sensing Systems’ PS2P-CON rotary position sensor delivers true touchless sensing for harsh industrial and vehicle environments in a low profile and robust magnetic design.

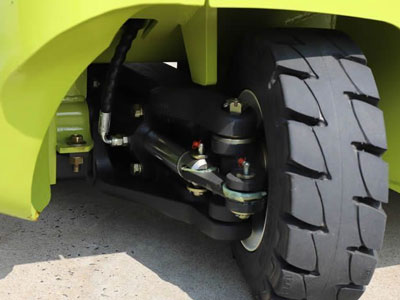

Magnet and sensor module are placed in separate housings without the need for any gears, bearings or linkages and can be placed anywhere on the pivoting shaft. This allows for easy mounting, thereby delivering additional cost reduction on the production line. Furthermore, without wear and tear of radial forces product reliability and lifetime are increased significantly.
The PS2P-CON measures changes in angular position relative to the sensor by detecting the movement of a diametrically magnetized magnet that is located in a separate housing and is only sensitive to the flux density co-planar with the IC surface.
The PS2P series is complemented by touchless linear (PS2P-LIN) and play resistant arc (PS2P-ARC) position sensors. All sensors of the series are absolute sensors and will deliver the same level of precision and stability throughout their lifetime as on the first day they are installed – despite extremes of vibration, shock, temperature and contamination.
|Linearity*||±1% absolute (±0.5% upon request)|
|Angular range||Programmable from 15 to 360 degrees|
Analog (Ratiometric), PWM, CAN |
SPI on request
|Switch Output||On request|
Analog, PWM, CAN - Up to 12 bit |
SPI - Up to 14 bit
5V ±10% |
7V-15V (A&PWM) / 7V-32V (CAN)
Single version - Typ 8.5 mA |
Redundant version - Typ 17 mA
CAN version - Typ 47 mA
* Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity
** Voltages up to 25V possible on request
|With magnet M001||With magnet M006|
|Nominal air gap||3mm, between plastic parts||1mm, between plastic parts|
|Maximum air gap||5mm, higher on request||1.5mm, higher on request|
|Maximum allowed radial offset||±3mm||Contact Piher Sensing Systems|
|Operating and storage temperature*||-40° to +125°C|
|Vibration||5Hz to 2000 Hz; 20g; Amax 0,75 mm|
* Other specifications available
** CE-approval applies to analogic models models with M001 magnet
