Choosing the Optimal Current Sensor for Energy Storage System Battery Management Systems (BESS BMS)

In the evolving landscape of renewable energy, Battery Energy Storage Systems (BESS) have become essential to store, manage, and optimize energy use. A key player in ensuring the safe and efficient operation of BESS is the Battery Management System (BMS), and one of its critical components is the current sensor. The current sensor’s role is to monitor the current flowing in and out of the battery, ensuring proper charge and discharge cycles. Selecting the right current sensor can significantly impact the system’s overall performance, safety, and lifespan.

1. Isolation and Power Consumption

Electrical Isolation

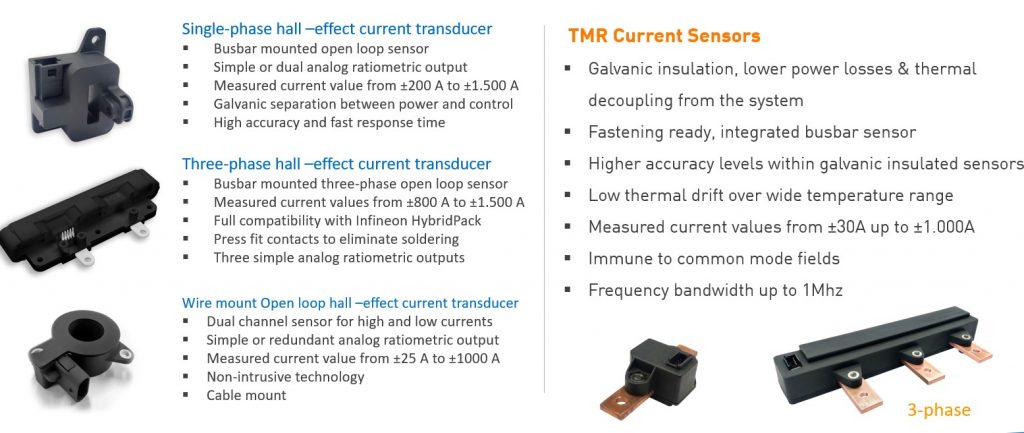

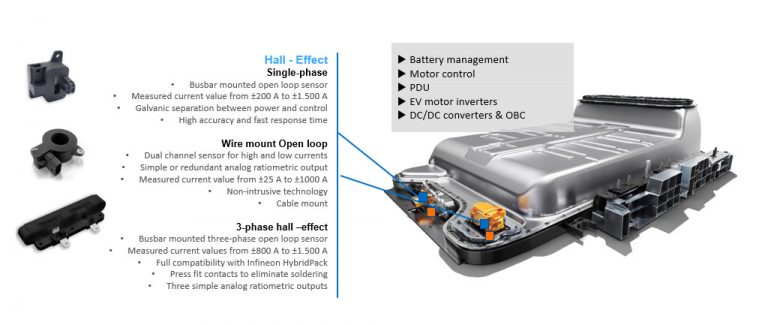

Energy storage systems, especially those in high-voltage environments, require electrical isolation to prevent high-voltage surges from damaging the sensitive components of the BMS. Current sensors with isolation provide a critical safety barrier. For instance, non-contact current sensors like Hall-effect sensors and TMR Current Sensing inherently provide isolation, ensuring that the high-voltage side is separated from the low-voltage electronics.

On the other hand, shunt resistors lack inherent isolation and need additional isolation circuitry, increasing the complexity and cost of the system​.

Power Consumption

Energy efficiency is paramount in long-duration energy storage applications. Choosing a low-power sensor that consumes minimal power contributes to overall system efficiency. Non-contact technologies like Hall-effect sensors are ideal for applications requiring minimal heat generation and power consumption​.

2. Accuracy and Resolution

Accuracy

A current sensor’s accuracy determines the reliability of the data the BMS uses to manage battery charge and discharge. High accuracy is especially critical for monitoring small current variations that could affect the state of charge (SoC) and state of health (SoH) of the battery.

Resolution

Resolution defines the smallest change in current the sensor can detect, a crucial feature for detecting idle currents or small discharges during battery operation. Higher-resolution sensors, combined with quality analog-to-digital converters (ADCs), help maintain precise battery management by detecting even minute current fluctuations​.

3. Noise Immunity and Signal Conditioning

Noise Immunity

Current sensors in BESS environments face significant electromagnetic interference (EMI) from other system components, such as inverters and power electronics. To ensure reliable performance, sensors must offer strong EMI resistance. Hall-effect sensors inherently offer better noise immunity due to their use of differential signaling and magnetic field compensation​.

Signal Conditioning

Proper signal conditioning, including filtering and amplification, is essential to prepare the current sensor output for use by the BMS. By filtering high-frequency noise and amplifying small signals, sensors ensure that the data remains clean and usable, particularly in noisy environments​.

4. Overcurrent and Fault Protection

Handling Overcurrent Conditions

Overcurrent protection is a critical aspect of current sensing in BMS. The sensor must detect abnormal currents, such as those caused by short circuits or system overloads, and trigger the appropriate safety mechanisms.

Fault Detection Capabilities

In addition to overcurrent protection, fault detection is necessary to identify conditions like insulation failure or leakage currents. These issues can lead to safety risks if not detected early. Implementing redundant sensing or multiple fault detection layers can enhance system reliability and safety​.

Choosing the right current sensor for an ESS BMS is critical to the system’s overall performance, longevity, and safety. Whether you prioritize isolation, accuracy, noise immunity, or fault protection, understanding the various technologies—such as shunt resistors, Hall-effect sensors, and TMR sensors—will help you make an informed decision. By integrating high-performance current sensing technology into BMS designs, engineers can optimize energy storage systems to meet the stringent demands of renewable energy integration and grid stability​.
