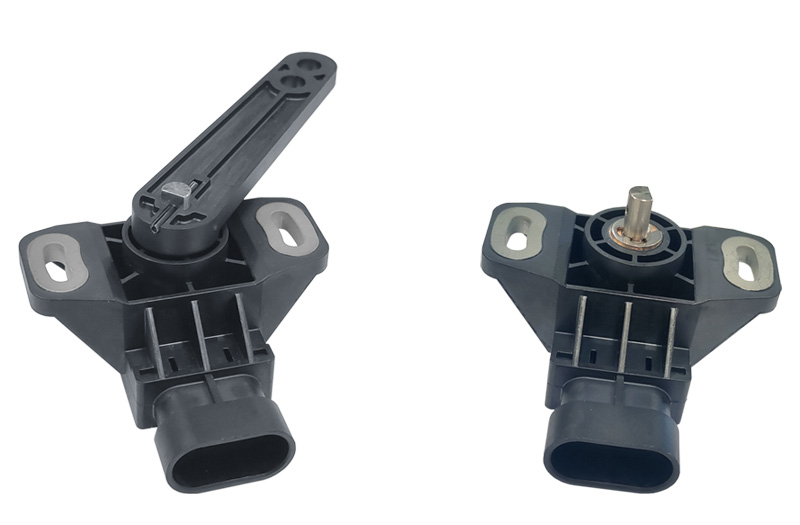

HRPS-M50

Rugged Magnetic Angle Sensor with Integrated Connector

The HRPS-M50 angular sensor is a high-performance device engineered for precise angle measurements. Utilizing a non-contact Hall effect measurement system, it ensures exceptional reliability and boasts a long service life of up to 50 million cycles. Its robust IP67-rated housing offers protection against harsh environmental conditions, making it ideal for demanding applications in industrial automation, agriculture, and renewable energy sectors.

Featuring a convenient integrated connector, the HRPS-M50 simplifies installation and maintenance by enabling quick and secure electrical connections. This enhances its usability in complex systems. Available with either ratiometric or current-based outputs, this versatile sensor is perfect for providing precise angular feedback in applications such as throttle position sensing, valve monitoring, and wind turbine blade positioning. Its advanced magnetic sensing principle ensures that the output is always precise, while the rugged construction is ready for the toughest environments.

With a durable design, a programmable electrical angle ranging from 45° to 360°, and an optional mechanical lever for extended range detection, the HRPS-M50 delivers flexible and reliable angle sensing solutions across a variety of industries.


KEY FEATURES

The magnet is securely fastened to the shaft and acts as only moving component in the sensor.
The rugged package protects the sensor from dust, moisture, vibration and extreme temperatures for usage in the most demanding environments.
The non-contacting design allows for an extra-long product lifetime of up to 50 million cycles.

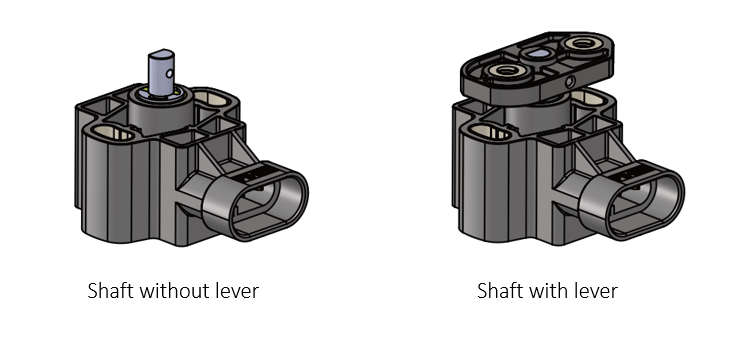

An optional lever can extend beyond the sensor body, allowing the sensor to detect positions over a wider range or area.


SPECIFICATIONS

Linearity* ±1% absolute
Angular range** Programmable from 45 to 360 degrees

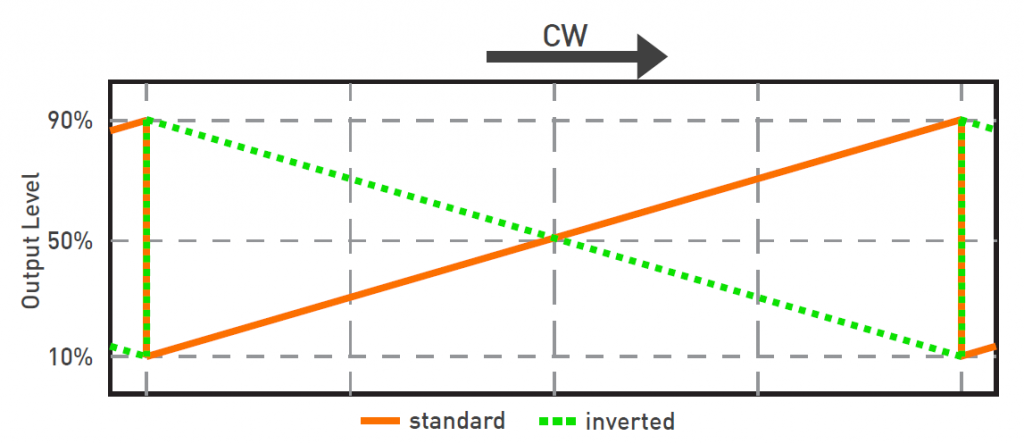

Output protocol** Ratiometric: 10% to 90% of Supply Voltage
RE: 0.5 to 4.5 VDC
Current:4 to 20mA
Resolution Up to 12 bit
Angular resolution 0.1º
Supply voltage 4.5 to 5.5 V / 10-30V (RE-mA)
Supply current 20mA
Over / Reverse voltage protection Ratiometric: +15/-10V
RE, Current; +30V/-30V
Self-diagnostic features Yes

* Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity ** Others available upon request

Life Up to 50M cycles
Mechanical range 360° (endless rotation)

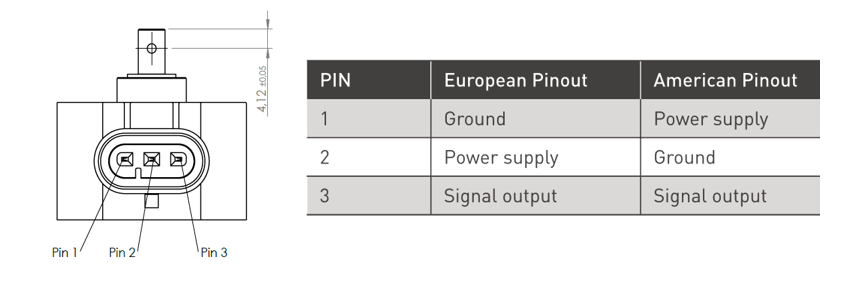

Mating connector Amp superseal ref: 282087-1
Operating temperature -40° to +125°C
Sealing IP67, IP69K

Other specifications on request
